Standard Internal Tie Down Kit
Here is a complete list of the parts we use for the camper installation kit.
Truck to truck, and camper to camper, there can be some small (and big) differences in the camper installation kits, but these are the basic parts & pieces you will always need on hand.

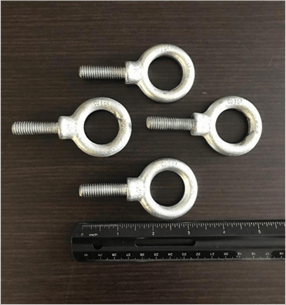

4ea. 3/8” Forged, Zinc Coated, Steel Eyebolts
1 ½” Long
8ea. 3/8" Fender Washers
Manufacturer: American Bolt & Screw

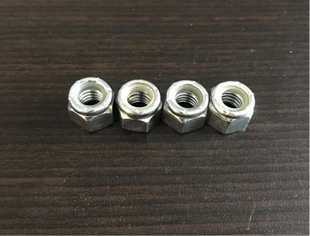

4ea. 3/8" Nylon Lock Nuts
Manufacturer: American Bolt & Screw

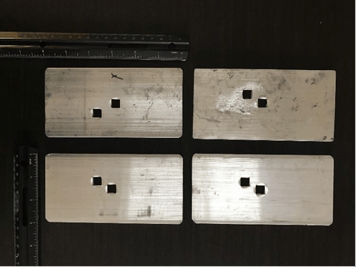

4ea. 3” x 6” x 3/16” Aluminum Plates Manufacturer: FWC

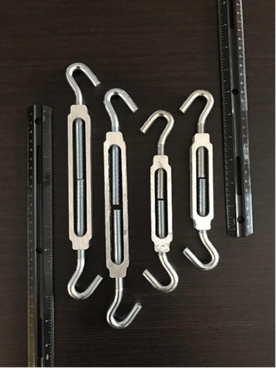

4ea. Turnbuckles
Long: 6” Shaft Short: 4” Shaft
We use 2 different sizes depending on what fits best. We usually use 4 long turnbuckles.
Manufacturer: Hindley
Wiring Kits:

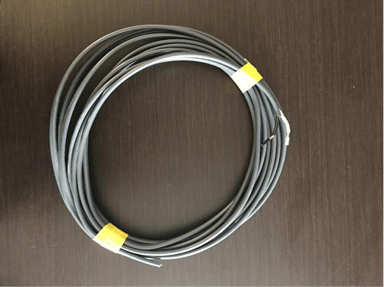

Approximately 20' of 10/2 Stranded/Sheathed Wire (10g, Stranded, Double Insulated, 2 Wires)
Manufacturer: State Wire

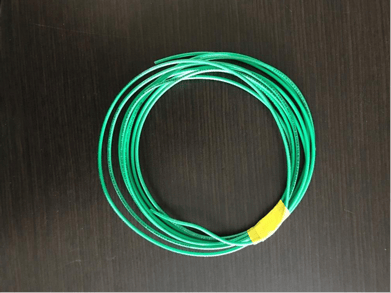

Approximately 12' of 14g wire (green)
Use This for Campers that have Marker/ Running Lights Installed

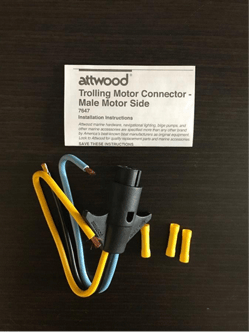

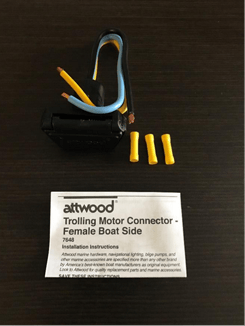

1ea. Atwood Trolling Motor Plug Set (Part # 7648 & 7647) Manufacturer: Atwood
1ea. 30amp Thermal Breaker Fuse
2ea. #8 x 1/2" Self-Tapping Screws (to Install the Thermal Breaker Fuse) 2ea. #8 x 3/4" Black Screw Drive (Plug in Bed) 2-1/4" Ring Terminal 2ea: #10 Ring Terminal
2ea. 3/8" Ring Terminal
2ea. Scotch Locks
We also have a special drill bit we use for drilling the hole in the truck bed to be able to install the Atwood trolling motor plug.
3/8” Drill Bit is used to drill into the bed of the truck
1 1/8” Unibit is used to drill a hole into the side bed rail of the truck to install the Trolling Motor Plug
