Alu-Cab - Operation and Care Instructions

Guide to operation of the Alu-Cab shadow awning

OPENING

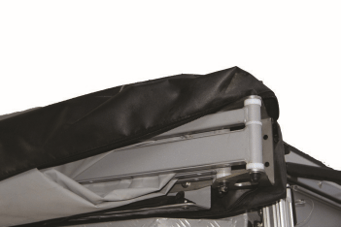

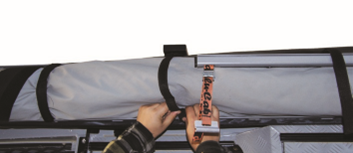

Step 1: Open Zip Step 3: Undo the three Velcro straps
Step 2: Flip the bag clear of the hinge Step 4: Grab all the arm ends and lift out the cradle

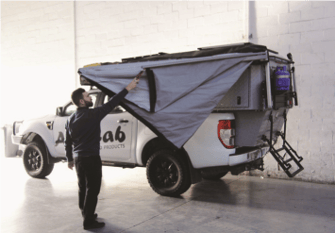

Step 5: Grab the strap on the top arm and pull it with you as you walk to the rear of your vehicle.

Make sure that bystanders keep clear!

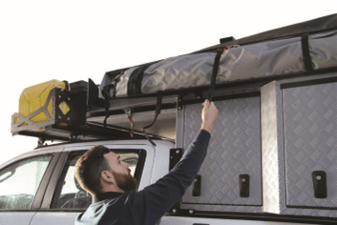

 Step 6: Clip the strap onto the rail at teh back of your vehicle
Step 7: Tighten the strap by pulling the loose end of the strap away from the cam buckle

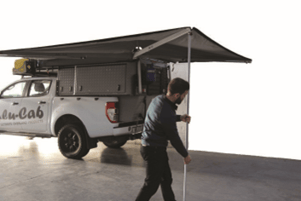

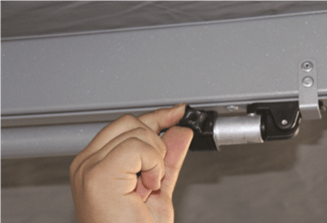

Step 8: Raise the center bar on the middle arm until it locks into place Step 10: With the foot of the center support leg on the ground, raise the awning slightly, and tighten thumb screw on the pole
Step 9: If required, drop the center support leg, loosen the thumb screw and then pull the support foot out of its housing Step 11: If required, deploy the guy-ropes from the awning arms



CLOSING

Step 1: If the center support leg was deployed, loosen its thumb screw and fold the leg up to the awning arm. To secure, slot the support foot into the cradle and then tighten the thumb screw Step 2: Drop the center bar on the middle arm until it lays flat
Step 3: Release the cam buckle on the strap at the rear of your vehicle and unhook



Step 4: Holding the strap, walk around to the front of your vehicle, to the front of the awning frame.

Make sure that bystanders keep clear!

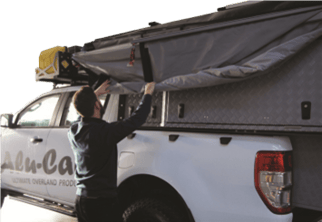

 Step 5: Push the awning arms flat against the awning frame

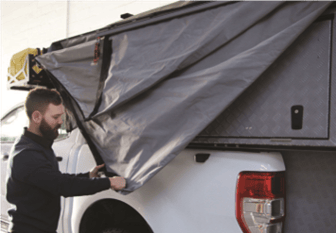

Step 6: Grab the two lower canvas folds and roll the canvas upwards

Step 7: When the third canvas fold is exposed, include it into the roll and carry on rolling upwards until the canvas roll is tight against the awning arms Step 8: Secure the canvas tightly with the three Velco straps
Step 9: Close the awning zip towards the rear of the vehicle

IMPORTANT NOTES:

  • Don't pack the awning away when it's wet.

  • Don't leave your awning unattended unless you've deployed the guy ropes.

  • While this unit handles the wind better than many awnings, we recommend that you deploy the guy ropes if the wind picks up. When in any doubt about the wind, we suggest that you use your guy ropes.

For an operating video, visit our website (www.alu-cab.com). If you have any other queries, please feel free to contact us by email (queries@alu-cab.co.za).
